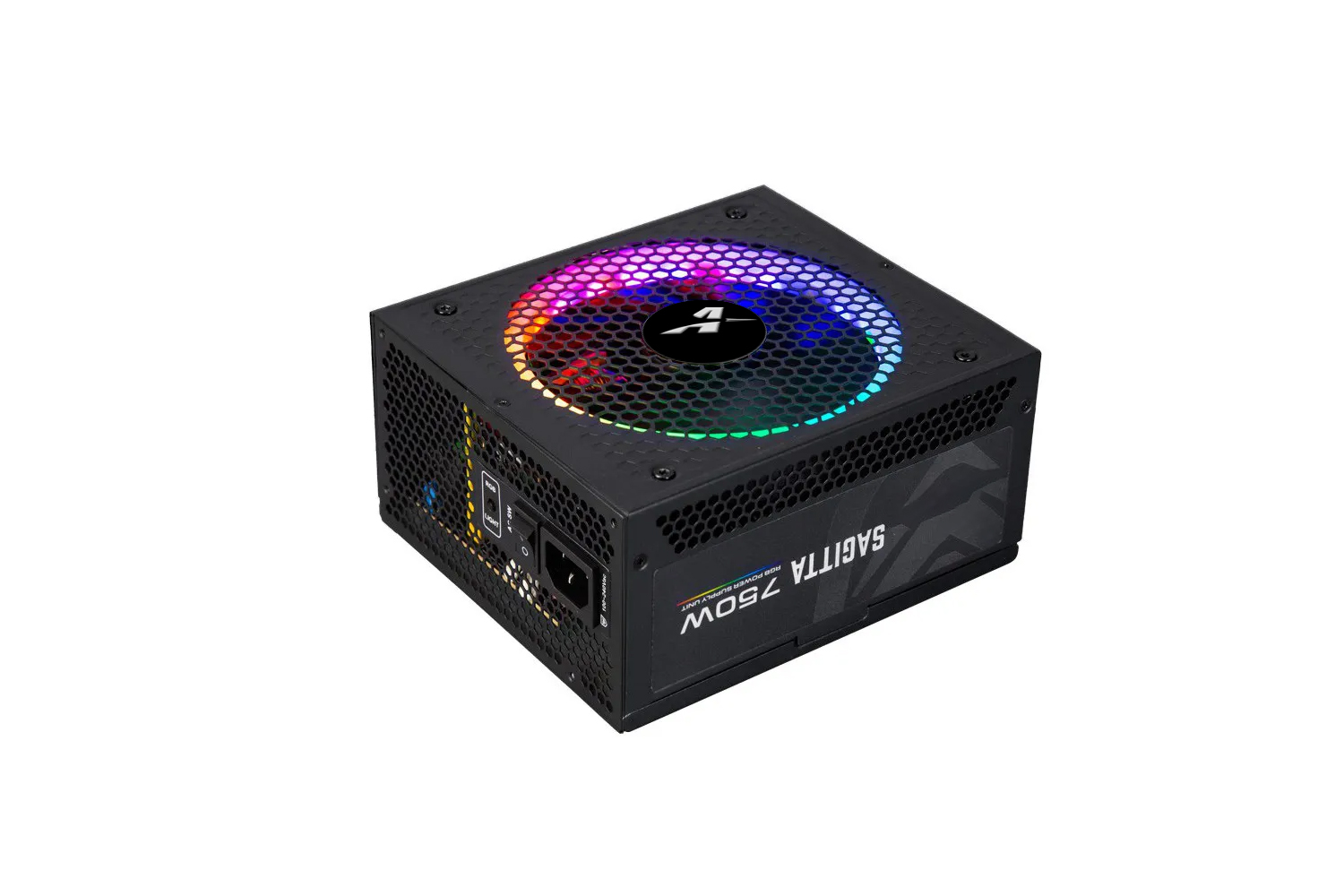

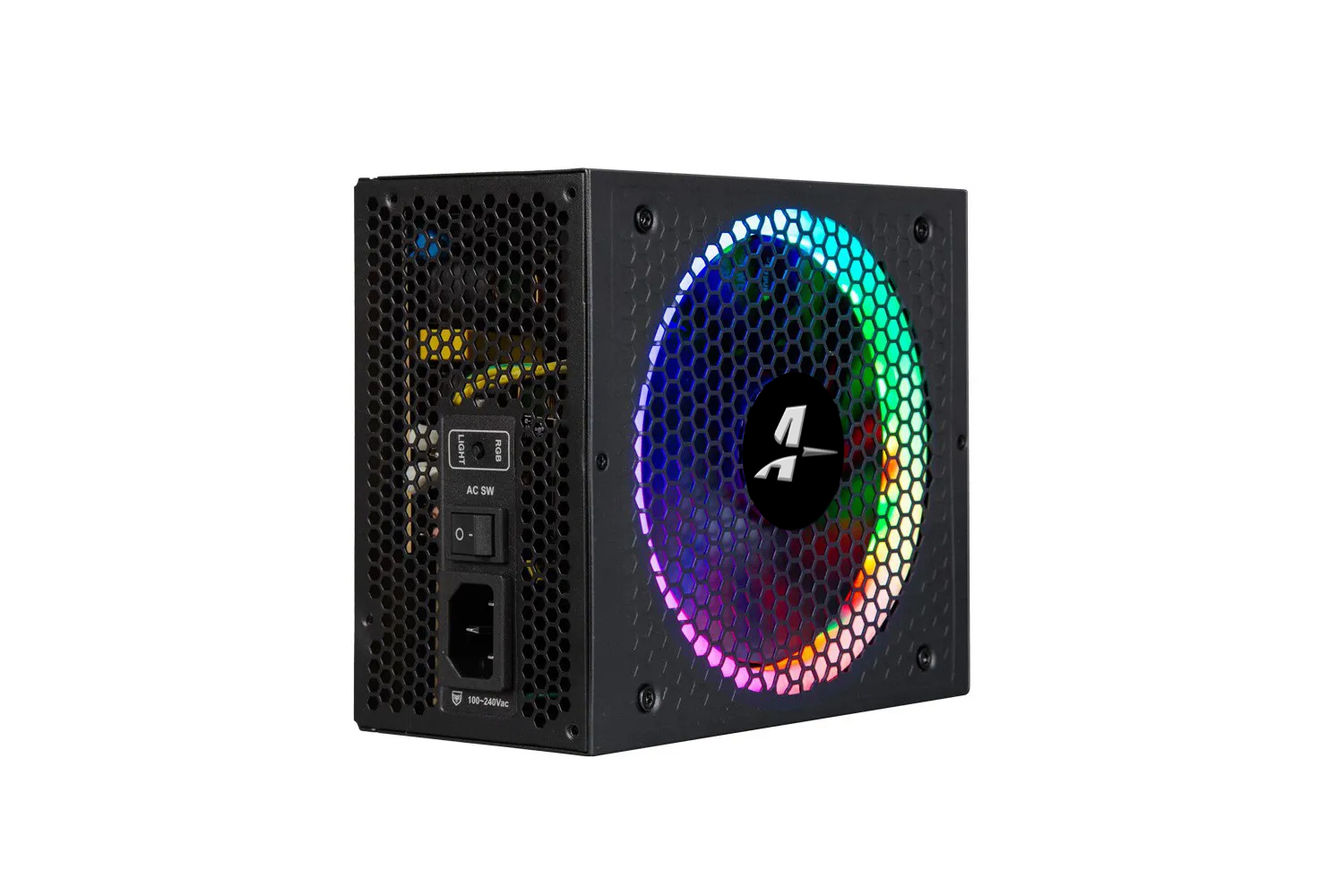

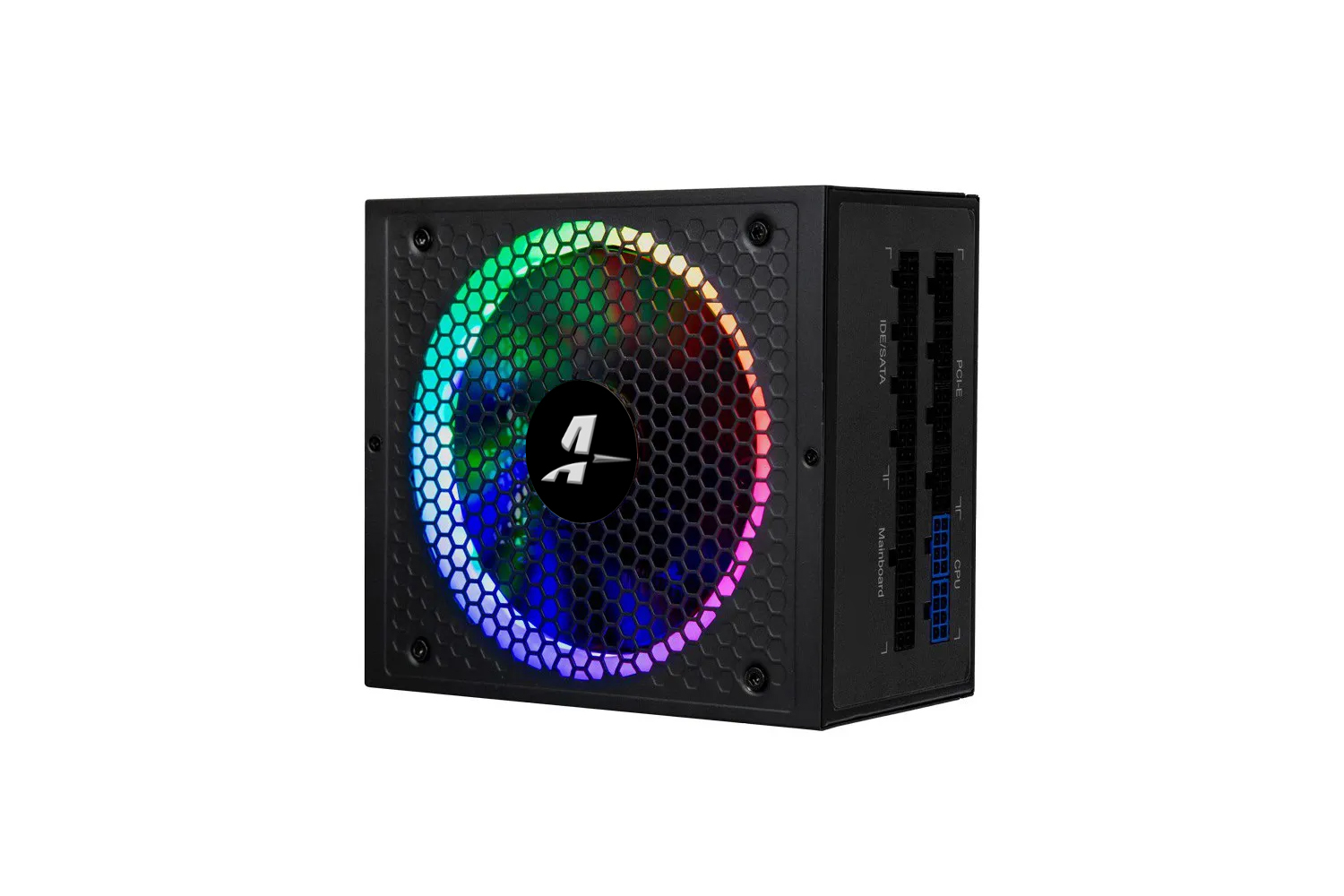

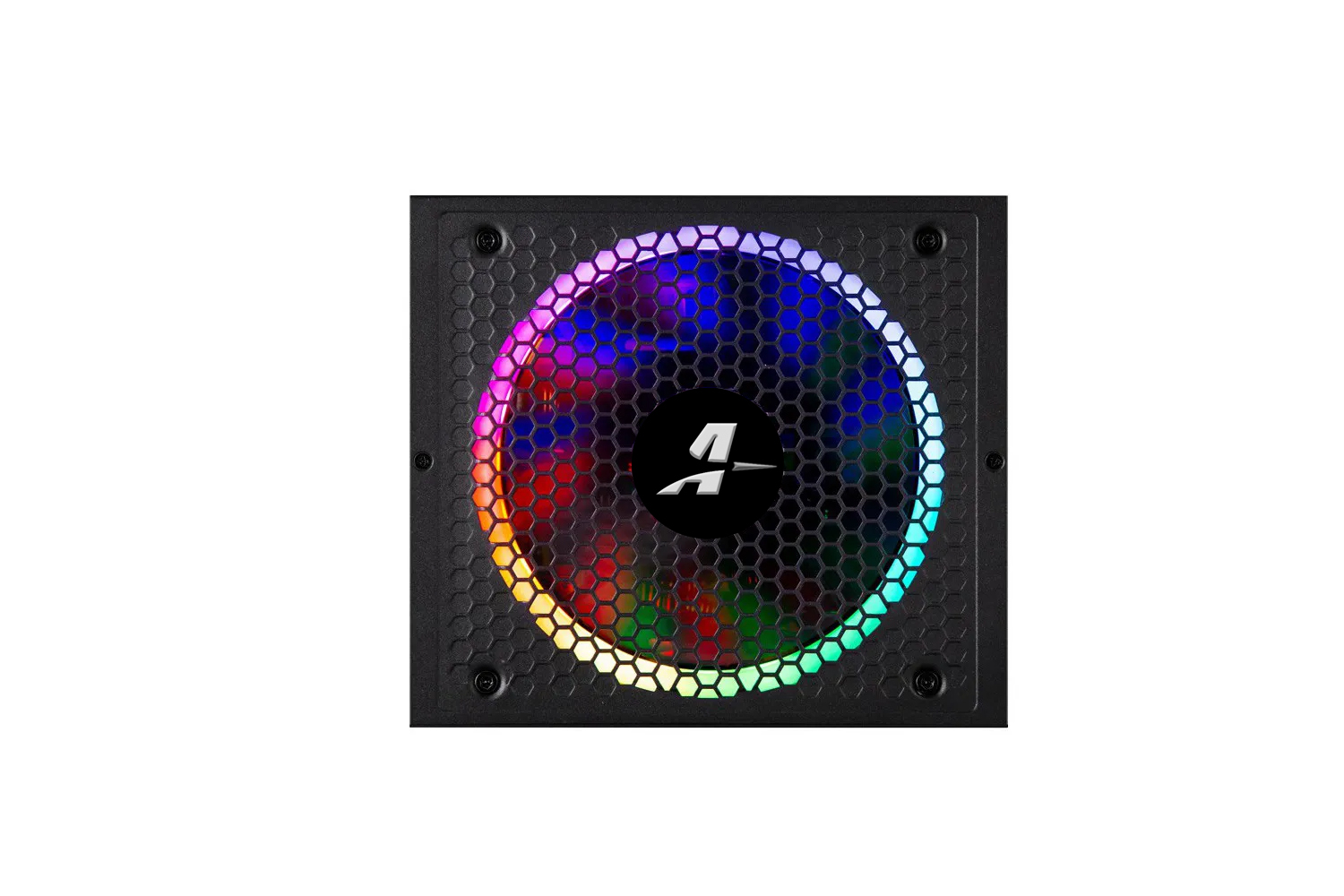

SAGITTA 750W》750W, 80 Plus Gold Certified, Fully Modular Power Supply

RRP：
  • Fully modular, so you only connect the cables your system needs.
  • Triple EPS12V connectors for full compatibility with modern graphics cards and motherboards.
  • A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
  • Zero RPM fan mode for near-silent operation at low to medium loads.
  • Industrial-grade, 105°C-rated capacitors deliver solid electrical performance and reliability.

TECH SPECS

MODEL

SAGITTA 750W

Dimensions

150mm x 86mm x 170mm

Format

ATX

Weight

2.7Kg

Ports and interfaces

Power supply for motherboard: 20+4 pin ATX, Length 600mm

EPS power connector (8-pin), Length 600mm

PCI Express power connectors (6+2 pin): 2, Length 550mm

SATA power connectors: 8, length 500mm

Power connectors (4-pin) peripheral (Molex): 3, Length 500mm

Additional FDD connector

Wiring Type

Full Modular

Protections

Over voltage (OVP), Short circuit (SCP), Under voltage (UVP), Over voltage (OPP) Over current (OCP)

80 PLUS Certification

80+ GOLD (90% Efficiency)

Cooling

Fan diameter: 14 cm

Number of fans: 1 Fan

Fan Location: Top

Cooling Type: Active

Included Contents

SAGITTA (1)

QR Manual (1)

Power cable (1)
